Read this article, and you will understand the tape dripping machine immediately

The tape dripping machine is more and more widely used in our life, mainly for anti-skid clothing. The belt coating machine produced by Dongguan Lixin Machinery Co., Ltd. is specially designed for the glue dripping of the belt, and has been issued a certificate by the patent department with the certificate number of ZL200720047480.2.
Basic components of webbing drip machine
It is mainly composed of glue supply part, loose belt part, belt conveying part, baking part, belt receiving part and control part
Working principle of webbing dripping machine
The liquid silica gel is conveyed to the mold through pressurization - pressure stabilization - metering, and then sprayed onto the moving webbing through the mold mouth. After baking, the webbing will form a silica gel, and the different width of the mold mouth will be changed, and the webbing will be coated with different sizes of linear silica gel. If the mold is swung left and right, regular waves and grid-shaped patterns will be formed on the webbing.
Classification of tape drippers
According to the silica gel used, it can be divided into one-component silicone tape dispenser and two-component silicone tape dispenser
Single-component webbing dripping machine
Single-component silica gel means that silica gel can be naturally solidified in the air without baking. Therefore, the front section of the machine and the oven are equipped with steam devices.
Two-component webbing dripping machine
Two-component silica gel is composed of A and B, and AB will not solidify without mixing. Because the silica gel is reinforced curing and has nothing to do with humidity, the machine has no steam device, only an oven.
Application range of the tape dripping machine
Underwear shoulder strap, sports pants cuffs, sports clothes cuffs, trousers waist, shoelace, dog belt, etc

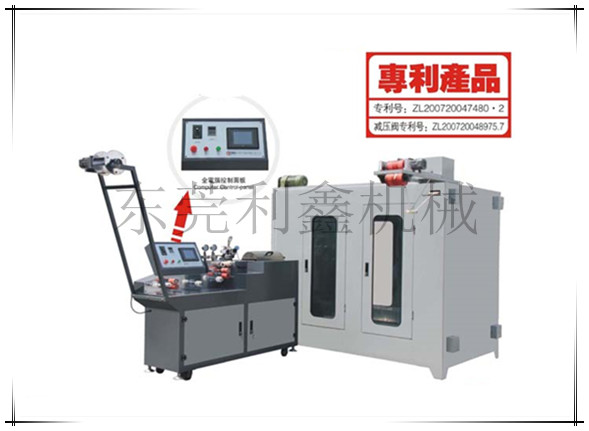

Features of Lixin mechanical belt dripping machine:
This machine is fully controlled by computer, and can realize silicone coating of straight, wavy, reticulated and other special-shaped webbing.
The traditional steam system has been changed. This upgrade can save 3KW/hour.
Upgrade of glue supply system: no pressure reducing valve and cylinder are required. Realize continuous glue supply and stable glue supply.
Filter upgrade: filter screen can be replaced quickly.
It is applicable to the processing of textile webbing dripping, which can be realized in various shapes such as straight wave mesh
The whole machine is controlled by PLC integrated circuit, with simple operation and high production efficiency, up to 20 meters/minute
Appearance: oven 1380 * 2000 * 2000
Head: 2000 * 450 * 900
Power: 8KW
Power consumption: 5 degrees/hour
